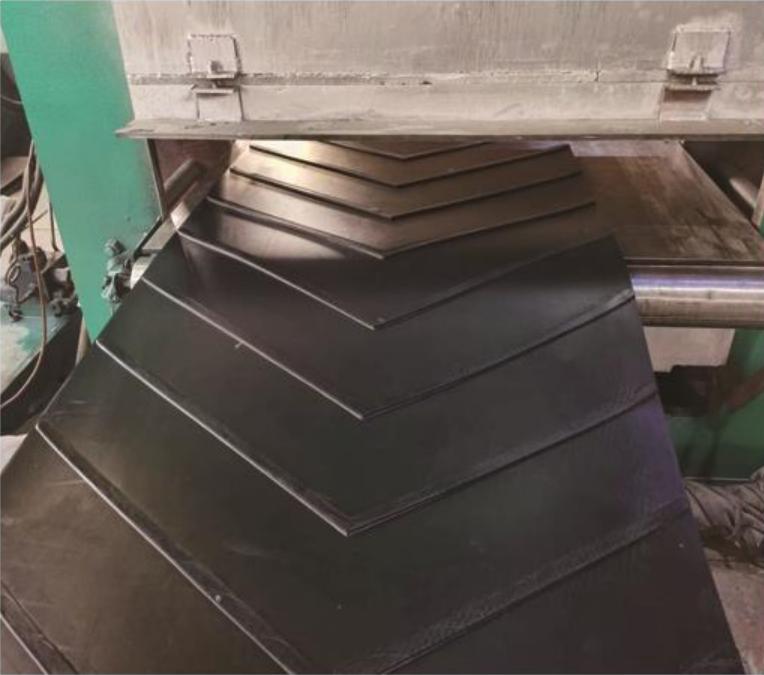

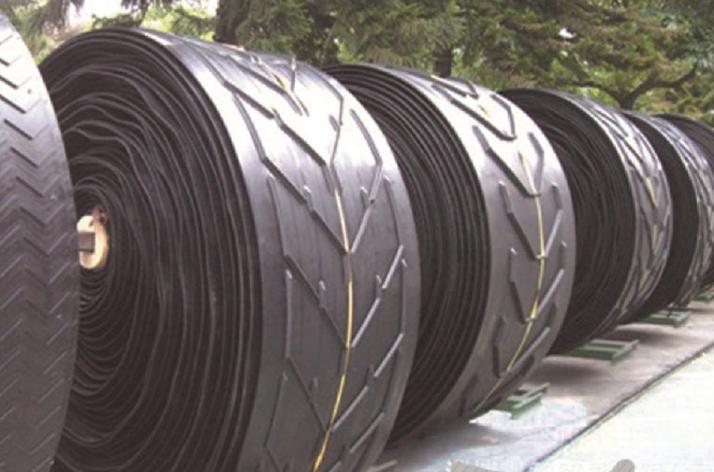

Patterned conveyor belt consists of three parts: patterned rubber cover which is working face, plain rubber cover which is non-working face, and belt core.
Characteristics
Materials of belt core: CC, NN, EP, etc.
Belt width: 300-1000mm

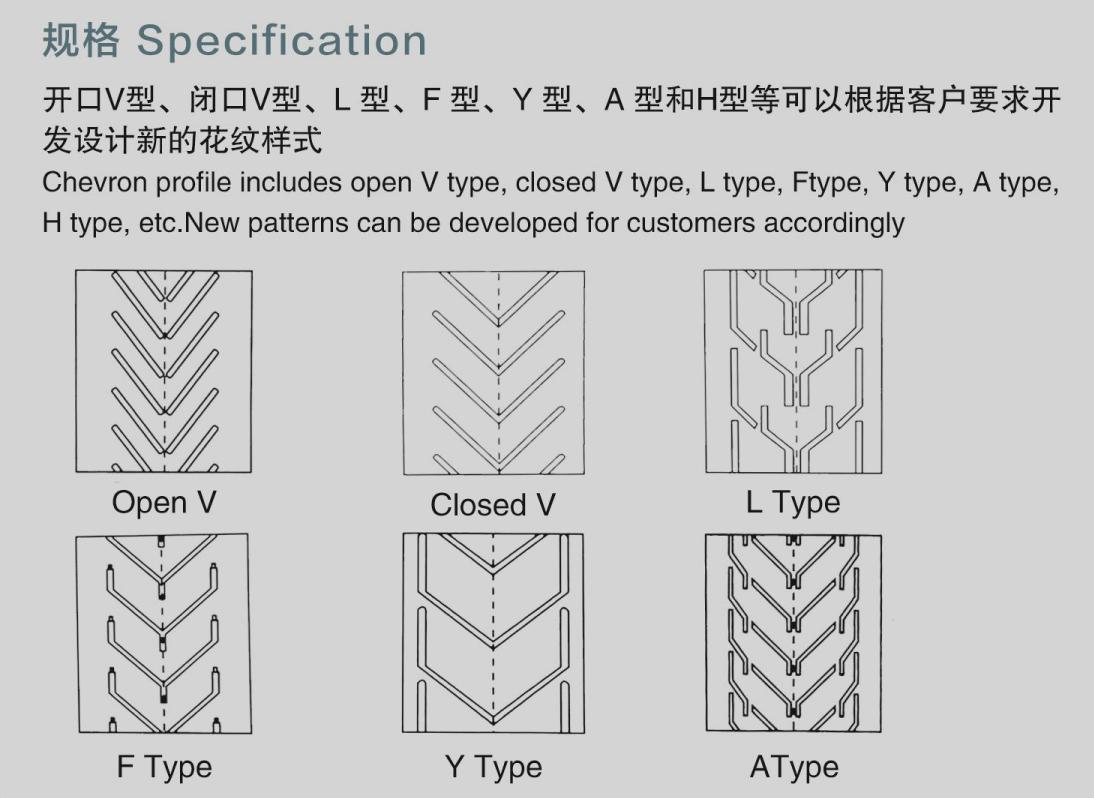

Pattern height: 5, 10, 15, 20mm, pattern shape can be made as per clients’ requirement.
Applications: transporting angle0~40°, powdery, granular and little lump materials
Cover Rubber | Adhesion | |||
Tensile Strength | Elongation at | Abrasion | Cover to Ply | Cover to Ply |
Mpa | % | mm3 | N/mm | N/mm |
(<=1.5mm) | (>1.5mm) | |||
15 | 350 | 250 | 3.5 | 4.5 |
18 | 400 | 90 | 3.5 | 4.5 |
20 | 400 | 150 | 3.5 | 4.5 |
25 | 450 | 120 | 3.5 | 4.5 |
